Review Power Pack XL DIM

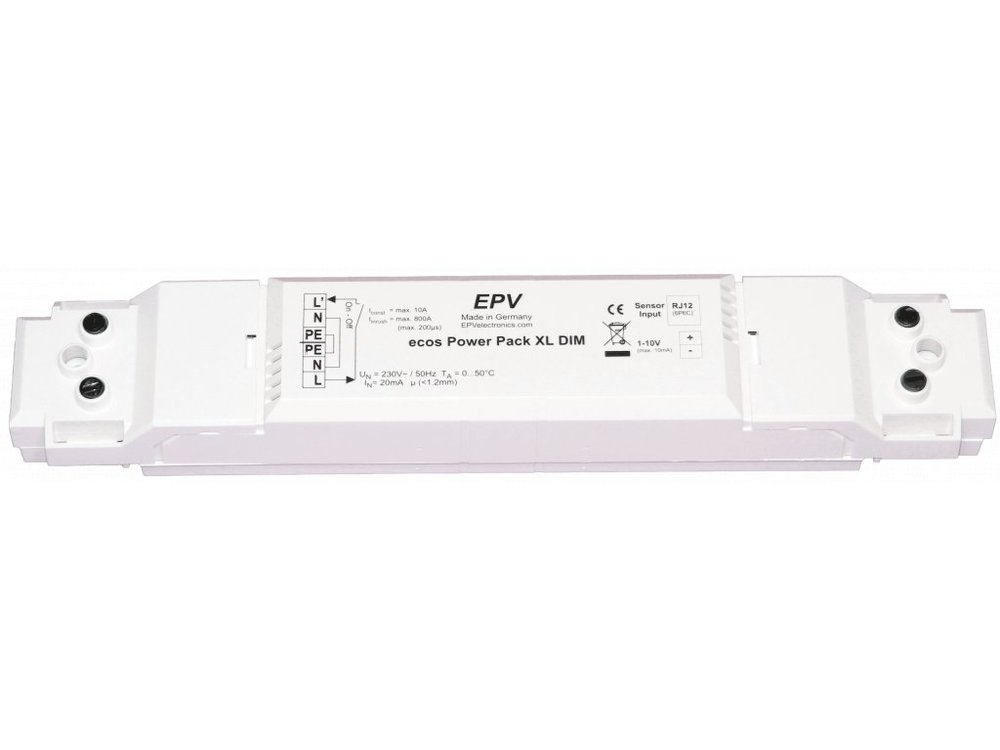

Power Pack XL DIM
in stock
EPV Power Pack XL DIM with On/Off + daylight dimming, high-load relay output 2300VA / 800 A and 1-10V output. Supports all 24V occupancy sensors apart from the 24V/5Si.
7-14 working days. From 20.12.2024 (1 pm) up to and including 05.01.2025 we will not deliver due to company holidays. We will be back for you from 06.01.2025. We wish you a Merry Christmas and a good start to 2025
Description
The ecos Power Pack XL DIM enables simple connection of ecos PM/24V occupancy sensors with and without dimming function.
One MASTER sensor and up to 30 SLAVE sensors can be connected in parallel. The connected sensors act as one sensor with a large monitored area.
Typical use: Open plan offices, large areas, large switching loads
- Power Pack for the ecos 24V sensors with dimming function
- On/Off + Dimming
- Switches 2300 VA / 800 A inrush (double-latch Tungsten relay)
- 1-10V dimming output
- Connects 1 MASTER DIM sensor and up to 30 SLAVE sensors
- With strain relief & terminal covers
Downloads:
Data sheet PP XL DIM
