Data sheet occy® smarthome (24V) dry contact

Installation variants for occy® (e.g.: sockets from KAISER)

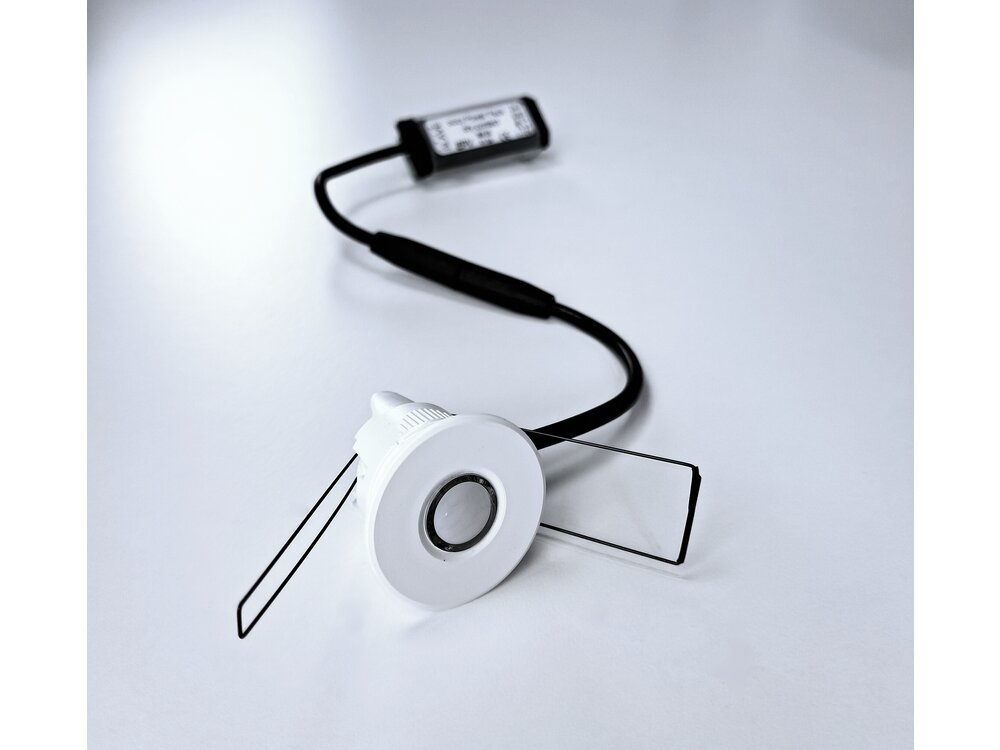

occy® smarthome: 24V PIR mini motion occupancy Smart Home sensor for Loxone, Lutron, WAGO, Beckhoff, Homematic, Comexio, Control4, Crestron etc.

• Maximum installation height: 5m
• Output signal light value: 10mA active and passive
• Output signal presence: 50mA dry contact
• Activation time (on-time): 10 seconds
• Power supply: 15-26,5V DC
• Ambient temperature 0-50 ° C
• IP 41
• Technology: digital passive infrared (PIR) sensor
• Occupancy sensors are motion sensors that offer a higher-than-normal sensitivity for use in indoor applications

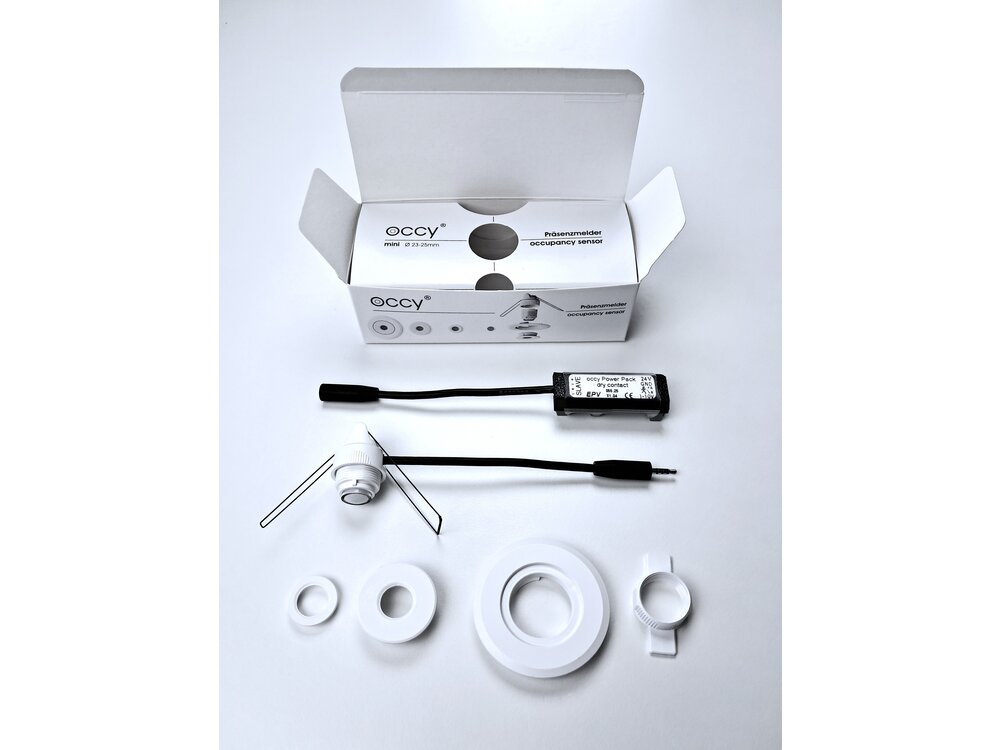

Scope of delivery:

• Sensor head
• with accessories for all 4 types of installation and
• 24V powerpack for system connection

The covered area is circular (360 °), its size varies with the installation height of the sensor.

How to calculate the area: D = 1.74 x H (D= diameter of the observation area, H = ceiling height)

Example: H = 3 meters -> The observation area has a diameter of 5.22 meters

You can quickly and easily expand the monitoring area with up to 5 additional occy sensors

The coverage area of an occy® sensor can be extended by connecting up to 5 more occy® sensors with any standard 2-core cable.

Your benefit: In this way, coverage extension does not require additional inputs on your control system to be used. Long hallways and very large rooms can be monitored with minimal installation effort. All connected sensors work in parallel, i.e. like one sensor with a very large coverage area.

Commissioning & Test Mode

After you connect the supply voltage, occy goes into a test mode. For 5 Minuten the green LED lights up whenever motion is detected. After that, the LED remains off. During normal operation, the sensor does not create any visual or acoustic signal / noise.

White or black? You decide.

No two projects are identical. Sometimes white sensors are your best choice, especially if you want them to blend in perfectly and be almost invisible. In other projects, you might want to set visual accents and highlights. Also, if you project features grey or black ceilings, the occy® black edition might suit your requirements. You decide!
